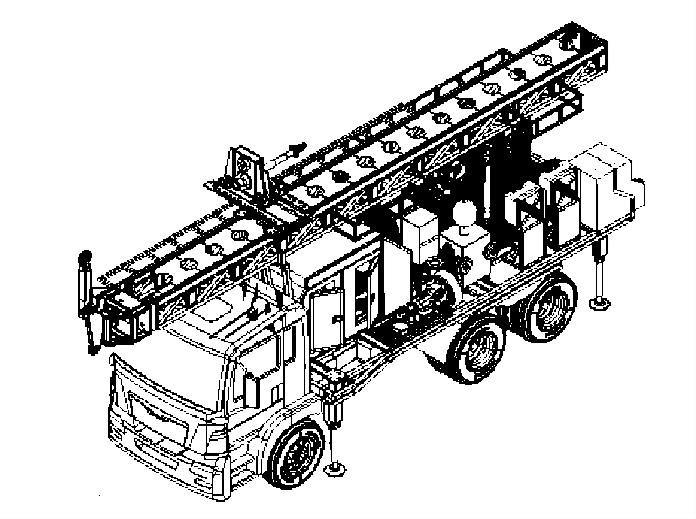

Hammer Back TM-180 LM – Nusantara

Rate Capacity
Drill Pipe : Min 3 ½” (2 3/8 or 2 7/8 IF API)
Depth : 250 Meter
Hole Capacity : (7 7/8” – 14 ¾ “) in Step
Handle Pipe : 3 – 6 Meter

Rotary Head
Type : Topdrive
Rotary Speed : ± 90 Rpm (max)
Torque Max : 6500 Nm
Lifting Capacity : 11000 kgf

Pull Down /Pull Back
Type : Hydraulic Cylinder Combined with Wire rope
Max Pull Back : 11000 kgf
Max Pull Down : 6400 Kgf

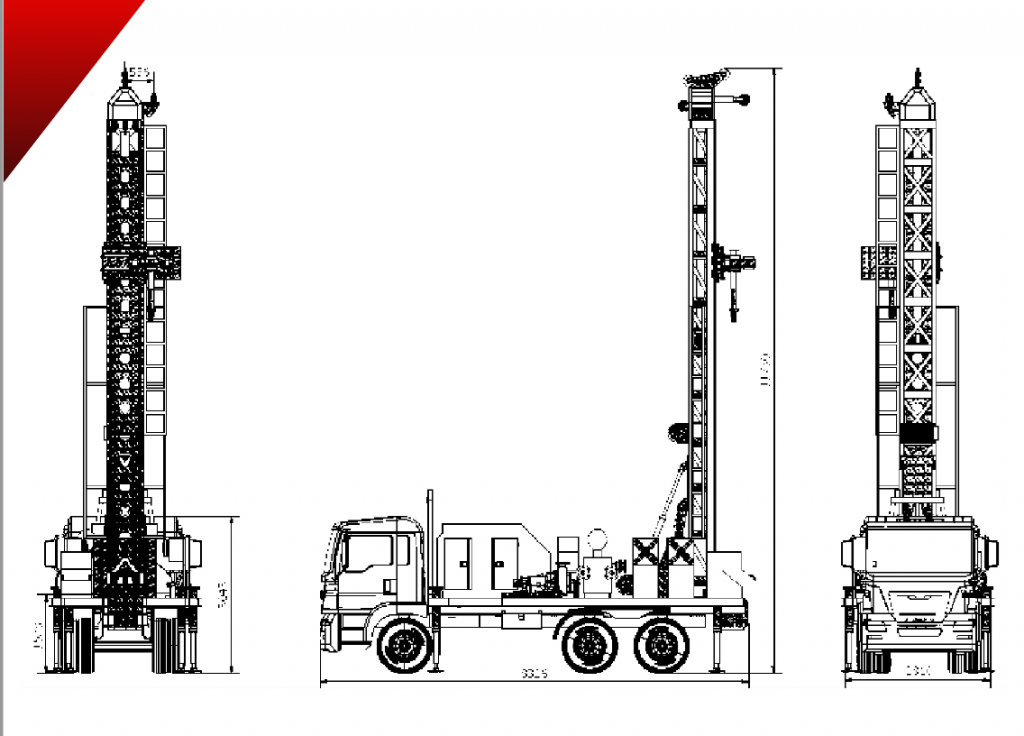

Mast
Type : WF Beam (SNI Standard Steel) Integrated with drilling rig and mounted on the truck
Mast Capacity : ± 23000 kgf Mast Height : ±10600 mm Above Ground

Hydraulic System
Type : Tandem gear Hydraulic Pump
Tank Capacity : 600 Liter Cooling Capacity : 2 x 18000 Btu/Hr

Jack Leveling
Type : 4 Hydraulic Cylinder Jack
Stroke : 760 mm
Holder Type : Pilot Double Check Valve

Mud Pump Capacity
Type : Piston Duplex
Volume Rate : ± 600 liter per menit
Pressure Rate : 20 – 30 kg/cm2

Foam Injection Pump (Option)
Type : Piston pump
Driven : Hydraulic Motor Capacity : 20 lpm / 30 kg/cm2

Engine Capacity
Engine Brand : Cummins DCEC Series 6 Cylinder 5900 cc
Power Rate : 150 kW @1800 Rpm
Cooler type : Water Radiator

Breakout Pipe
System Hydraulic Cylinder type with Wrench torque suitable for Drill pipe.

Main Winch System
Type : Single Drum type with Hydraulic Motor .
Capacity : 2000 kgf
Roll Capacity : 60 Meter
Wire rope Size : 14 mm

Console Panel

• Oil Pressure Gauge Max 250 Bar
• Start Stop Button engine
• Emergency Button
• Hydraulic Handle Valve Control
• Electric Console

Accessories Machine
Welding machine : 300 A, 220 Volt
Generator Set 8000 Watt, 220 Volt

Pneumatic Oiler For DTH hammer (option)
Type : Pump Or Nozzle
Volume Rate : ± 1 liter per menit
Tank Capacity : ± 30 Liter
