About the Product
our products are best in class, with the latest technological designs and arrangements in such a way, making performance more efficient and effective.
ROTARY HEAD & DRILL PIPE ELEVATOR
A drill pipe elevator is used to load and unload drill pipe under rotary head

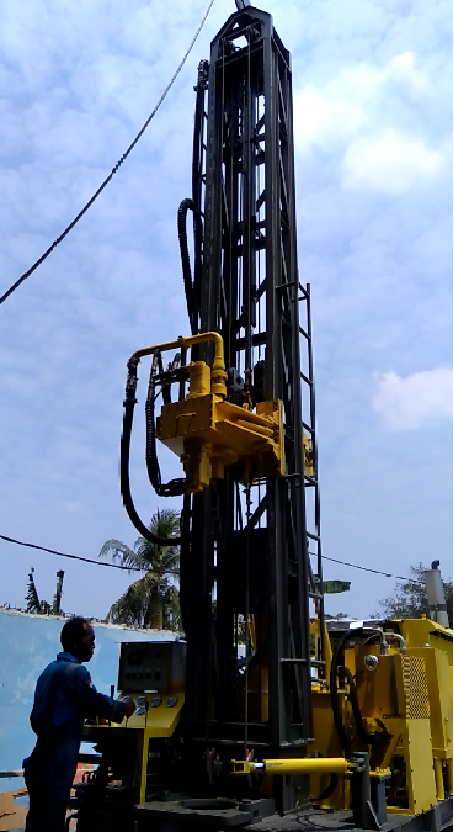

FEED SYSTEM
The feed system is powered through a hydraulic cylinder and wire rope system and has a pull back and pull down power

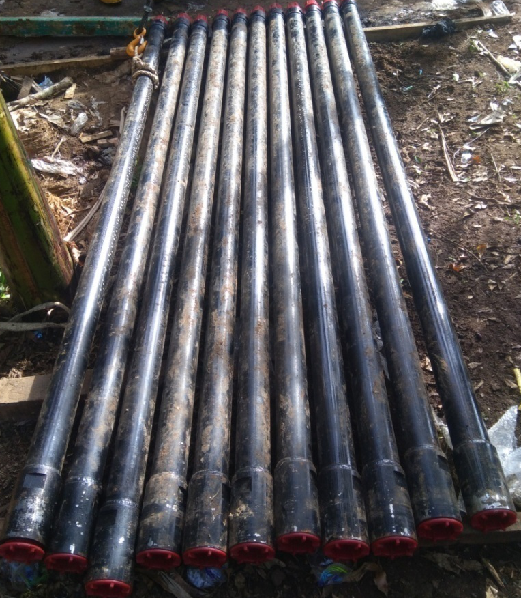

DRILL PIPE & CASING PIPE
The Casing size up to 6 Meter (20 ft) is possible to handle on the Water Well Drilling Hammer Back Series

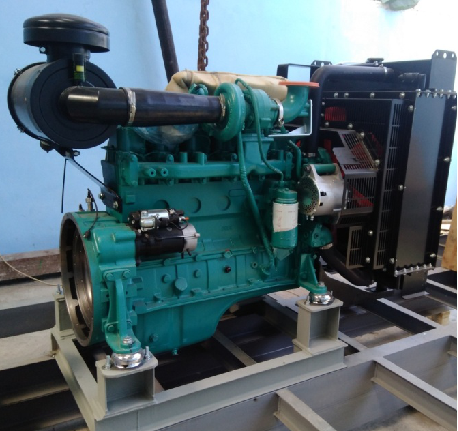

DECK ENGINE MOUNTED & CABIN
Naturally aspired engines have better life and performance, compact space for mounting and offers easy access for maintenance
MUD PUMP PACKAGE
The mud Pump is used for rotary drilling in soft formations with a mixture mud, where DTH Drilling is not possible

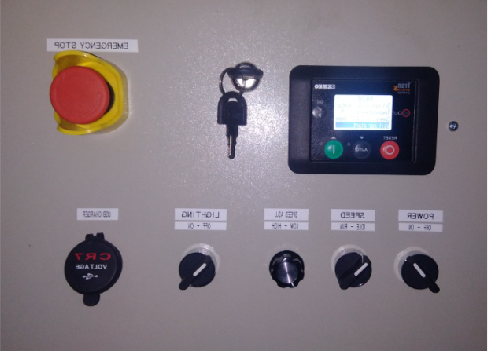

ELECTRICAL CONSOLE & CONTROL
The electric console is regulator all operating in engine mechanism
DRILLER CONSOLE & CONTROL
All operator control are controlled from a console which is located on the rear left side of the rig

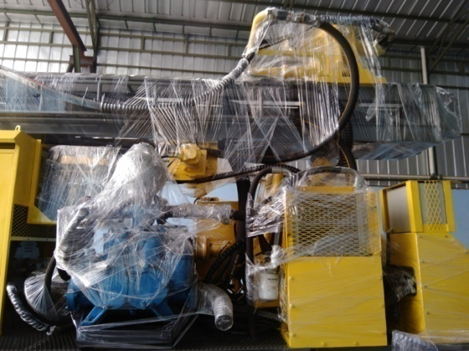

HYDRAULIC SYSTEM
The hydraulic system consists of a hydraulic reservoir, hydraulic pump, hydraulic motor, hydraulic cooler, valves, cylinder, pipes, hoses, filters, and gauges
HYDRAULIC JACK LEVELING
Four hydraulically operated leveling jacks are provided for leveling the rig. It provides a stroke of 560 mm ( TM 55 and TM65), 760 mm ( TM 130 and TM 180).
OPEN TABLE & BREAKOUT DRILL PIPE WRENCH
The open table has a table opening of 8 ½” for TM 55, 13” for TM 65, 15” for TM130, 18” for TM180 and is split-swing-out type for ease of operation
AUXILIARY HOIST (WINCH)
An Auxiliary hoist is provided for handling drilling tools and accessories. The rope has a high capacity hook
WELDING MACHINE AND GENERATOR
Welding machines of 300 Amps @ 60% duty cycle is integrated with generator 8000 watts.
